VICTRON ENERGY SCC125070521, is a solar charger collects energy from your solar panels and stores it in your batteries. With the latest and fastest technology, SmartSolar maximizes the energy collection and forwards it in an intelligent way to fully charge the battery in the shortest possible time. SmartSolar maintains battery health and extends life. For example, if the regulator is called MPPT 75/10, it means that the regulator can handle up to 75V input voltage (which means up to three solar panels in series) and a maximum current of 10A from the solar cells (145W for 12V).
Are you unsure which solar cell charger you should have for your solar panels? Click here to test Victron's MPPT calculator!
Bluetooth Smart built in

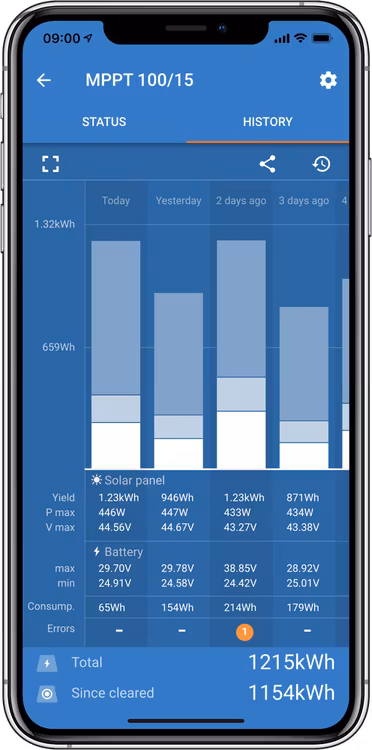

The wireless solution to configure, monitor, update and sync the charge controller for SmartSolar.
VE.Direct
For a connected data connection to a Color Control GX, other GX products, PC or other devices.
< strong>Ultra-fast tracking of maximum power (MPPT = Maximum Power Point Tracking )
Especially in cloudy weather when the light intensity changes constantly, the ultra-fast MPPT controller will improve energy absorption by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers.
Advanced Max Power Point Detection in case of partial shading.
If partial shading occurs, two or several maximum power points occur on the power-voltage curve. Traditional MPPT devices have a tendency to lock to a local MPP, which may not be the optimal MPP. The innovative BlueSolar algorithm always maximizes energy absorption by locking towards an optimal MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40 °C.
Flexible charging algorithm
Fully programmable charging algorithm (see software page on our website) and eight pre-programmed algorithms selectable with a rotary switch ( see instruction manual for further details).
Comprehensive electronic protection
Protection against overtemperature and power reduction at high temperature. Solar short circuit protection and reverse polarity protection. Solar reverse current protection.
Internal temperature sensor
Compensates absorption and float charge voltage for temperature.
Additional external battery voltage and temperature sensing via Bluetooth >
A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar charge controllers.
Recovery feature for fully discharged batteries
Starts charging even when the battery has been discharged to zero volts. Reconnects to a fully charged lithium-ion battery with an internal disconnect function.
