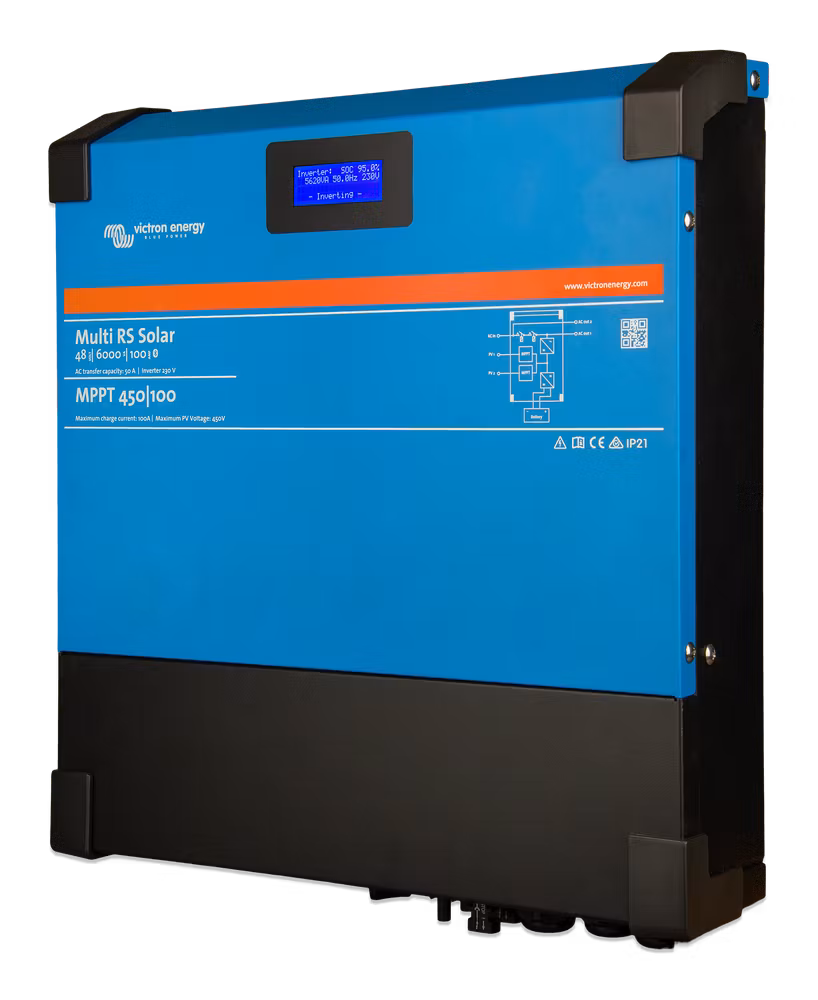

Victron Energy PMR482602020, is a 48 V 6 kVA inverter/charger with two individual MTPP tracker inputs of 3 kWp solar energy and 450 V, for a total of 6 kWp solar energy. Thanks to high-frequency technology and a new design, this powerful inverter weighs only 11 kg. It is also incredibly efficient, draws little power in standby mode and is very quiet in operation. The screen shows parameters for the battery, inverter and solar cells. The same parameters can be accessed with a smartphone or other Bluetooth-enabled device, using the VictronConnect app.
Operating modes
Hybrid mode - Stores excess solar energy in a battery, for use during the night or during periods of high demand. Provides extra power from the battery when demand exceeds grid capacity.
Standby Mode - Switches to stand-by mode during a power outage.
Off-grid Mode - Operates without grid connection
Generator Mode - Controls the generator to minimize operating hours. Provides extra power from the battery when the need exceeds the capacity of the generator.
PowerControl and PowerAssist - Boost the grid or generator capacity
It is possible to set a maximum value for grid or generator current. The Multi-RS will then take into account other AC loads and use any extra current for battery charging, preventing the generator or grid from being overloaded (PowerControl function). PowerAssist takes the principle of PowerControl to a new dimension. As peak power is often only required for a limited period, the Multi RS will compensate for insufficient generator or mains power with power from the battery. When the load decreases, the excess current is used to recharge the battery.
Display, Bluetooth and the VictronConnect app
The display shows parameters for battery, inverter and solar cells. The same parameters can be accessed with a smartphone or other Bluetooth-enabled device, using the VictronConnect app.
Scalable solar capacity, both AC and DC coupled
The integrated solar capacity of 6 kWp can be extended by adding more solar chargers to the system. Alternatively, the solar capacity can be expanded by installing solar inverters, from which the output current will be automatically controlled by the integrated Frequency Shift Power Control.
Communication ports
VE.Can connection to a GX device for system monitoring, data logging and remote firmware update. VE.Can connection to a GlobalLink 520 for remote data monitoring.
Input/output connections
Connection of programmable relay, temperature sensor and voltage sensor.
