VICTRON ENERGY SCC125085511, MPPT VE.Can SmartSolar charger uses the latest and fastest technology. The MPPT VE.Can SmartSolar charger converts energy from a set of solar panels into energy that optimally charges a battery. The SmartSolar charge controller even charges a severely discharged battery. It can operate with a battery voltage as low as 0 V provided the cells have not been permanently sulfated or otherwise damaged.
Not sure which solar charger to get for your solar panels? > Click here to test Victron's MPPT calculator!
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in cloudy weather when the light intensity changes constantly, the ultra-fast MPPT controller will improve energy absorption by up to 30% compared to PWM- charge controllers and up to 10% compared to slower MPPT controllers.
Advanced Max Power Point Detection in case of partial shading
If partial shading occurs, two or more maximum power points can (MPP) be present on the current-voltage curve. Traditional MPPT devices have a tendency to lock to a local MPP, which may not be the optimal MPP device. The innovative SmartSolar algorithm always maximizes energy absorption by locking towards an optimal MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%.
Flexible Charging Algorithm
Fully programmable charging algorithms and eight pre-programmed algorithms selectable with rotary switches (see manual for details).

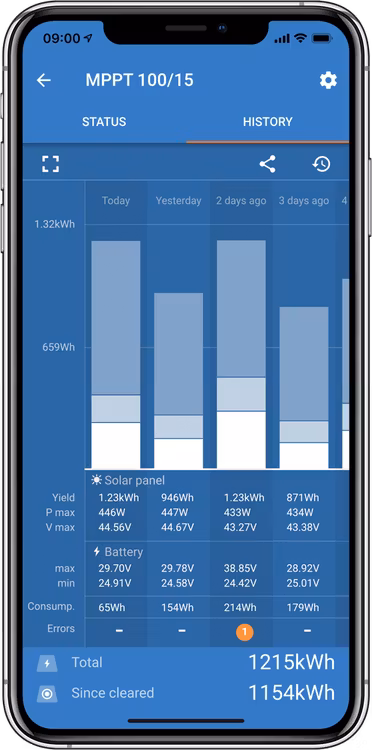

Built-in Bluetooth Smart
The wireless solution to configure, monitor, update and synchronize the SmartSolar charge controller.
Internal temperature sensor and additional external battery voltage and temperature and current monitoring via Bluetooth
A Smart Battery Sense or a BMV-712 Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature (and current, in the case of a BMV-712 or a SmartShunt) to one or more Smartsolar charge controllers.
VE.Direct or VE.Can
For a wired data connection to a Color Control GX, other GX -products, PC or other devices.
Recovery function for fully discharged batteries
Starts charging even when the battery has been discharged to zero volts. Reconnects to a fully charged lithium-ion battery with an internal disconnect function.
VE.Can: the multiple controller solution
Up to 25 devices can be synchronized with VE.Can and up to 10 devices with Bluetooth
Remote control on/off
To e.g. connect to a VE.BUS BMS.
Programmable relay
Can be programmed to be activated by an alarm or other events.
Optional : SmartSolar pluggable LCD screen
Only remove the rubber cover that protects the connector on the front of the regulator and plug in the screen.
