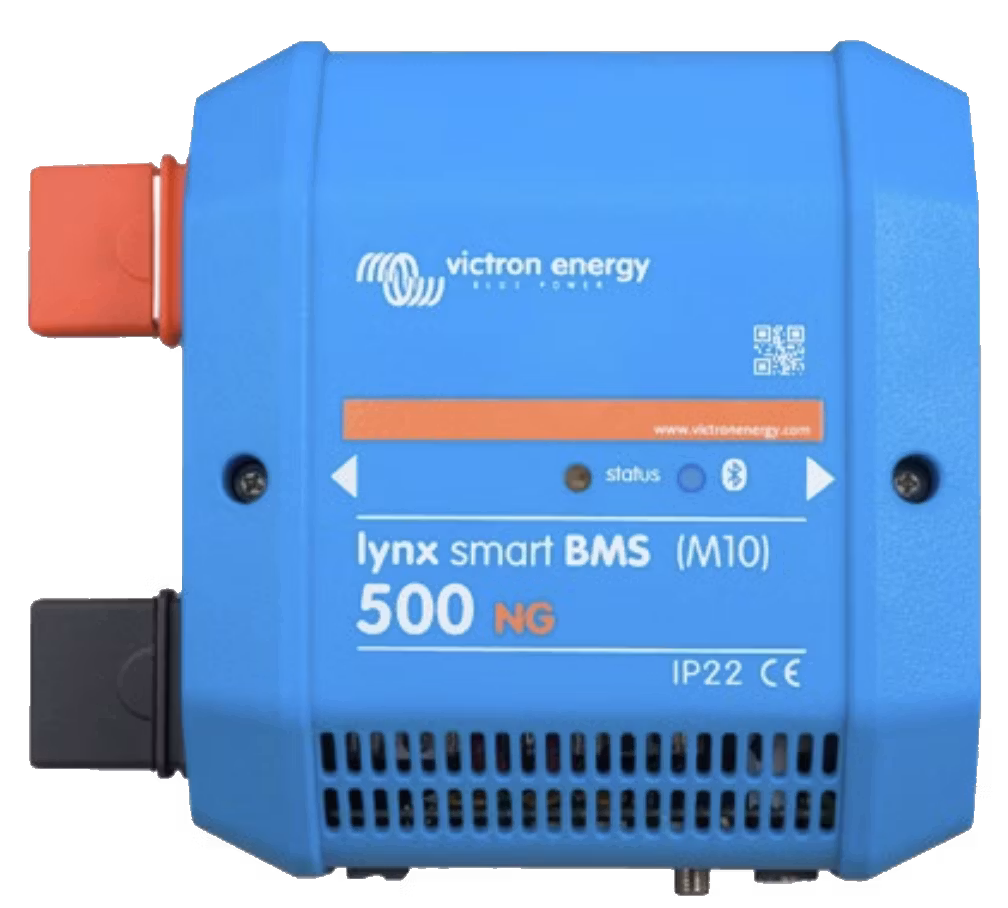

Victron Energy - Lynx Smart BMS 500 NG (NextGen) M10

  • 1,247.32 EUR
  • 1,028.32 EUR
Lowest price at PriceRunner

The Lynx Smart BMS NG is a dedicated battery management system (BMS) specifically designed for Victron Lithium NG batteries.

Share
Item number: LYN034160310
EAN: 8719076063551
Supplier: Victron Energy

Lynx Smart BMS NG is a dedicated battery management system (BMS) specifically designed for Victron Lithium NG batteries. These batteries use lithium iron phosphate (LiFePO4) technology and are available in 12.8 V, 25.6 V or 51.2 V and with several capacities. They can  be configured in series, parallel and series/parallel to enable the creation of battery banks with system voltages of 12 V, 24 V or  48 V. The maximum number of batteries in a single system is 50, enabling a maximum energy storage of 192 kWh in a 12 V system and up to 384 kWh in a 24 V and 48 V system. The highest energy storage capacity can be multiplied by paralleling several Lynx  Smart BMS systems, which also ensures redundancy if one of the battery banks fails. For detailed information about batteries  we refer to the product page for Victron Lithium NG batteries.

Of all the BMS systems available for all new Lithium NG batteries, the Lynx Smart BMS NG is the most feature-rich and  complete option and it integrates seamlessly with other M10 products into the Lynx Distributor system. Available in  500 A (M10) and 1000 A (M10) versions.

Built-in 500 A or 1000 A contactor

  • Available in 500 A (M10) and 1000 A (M10) versions
  • Acts as a secondary safety system to protect the batteries if they main controls (ATC, ATD and/or  DCVV inoperative).
  • Is suitable as a remote main system switch.

Precharge circuit< /p>

  • Prevents high inrush currents when connecting capacitive loads such as inverters.
  • Removes the need for external pre-charge devices.

Remote monitoring and control

  • Bluetooth connection for monitoring and control via the VictronConnect app or VE.Can connection in combination with GX units such as Cerbo GX or Ekrano GX and the VRM portal.
  • Readout of cell voltages and temperatures also on GX devices and the VRM portal.
  • Built-in battery monitor provides data such as state of charge, voltage, current, history data, status info and more, in  real time.
  • Diagnosis at a glance thanks to Immediate reading.

DCVV closed control and ATC/ATD contacts< /p>

  • Compatible Victron inverters/chargers, Orion XS 12/12-50 A DC-DC battery chargers and solar charge controllers are automatically controlled via a GX unit and DVCC.
  • ATC/ATD contacts can be used to control other chargers and loads that have a remote on/off port.

Programmable relay< /strong>

  • Can either be used as an alarm relay (in combination with the pre-alarm) or to control an AC generator via its  external regulator (ignition cable).
  • Includes Generator ATC mode for safe generator disconnection before disconnecting the battery.

AUX terminal

  • Extra on-board power supply (1.1 A@ system voltage) to supply special loads (e.g. a GX unit) after  BMS shutdown.
  • Automatic shutdown of BMS and AUX connection if no charging voltage is detected within five minutes of a  low voltage event.

VE.Can and NMEA 2000 data communication

  • Easy connection and communication with GX devices via VE.Can using an RJ45 network cable of standard type.
  • Integration into marine networks via NMEA 2000 protocol (requires a VE.Can to NMEA 2000 micro-C male cable).

Fuse monitoring Lynx Distributor

  • Monitor the fuse status of up to four connected Lynx Distributor units via VictronConnect or GX units.
  • Receive alarms in the event of broken fuses.

Parallel Redundancy Lynx Smart BMS

  • The new Parallel Redundancy feature for Lynx Smart BMS and Lynx Smart BMS The NG series allows multiple Lynx Smart  BMS systems in one installation. Each has its own battery bank and together they form a single redundant  battery system. Up to 5 BMS units can be connected in parallel.
