Maretron - Weather station WSO200, ultrasonic, NMEA 2000
  • 776,70 €
  • 761,13 €
Lowest price at PriceRunner

Ultrasonic weather station Maretron WSO200 for NMEA 2000 measures wind, temperature, air pressure and humidity. Marine-grade sensor with no moving parts.

Share
Article number: WSO200-01
EAN: 873804004532
Manufacturer: Maretron

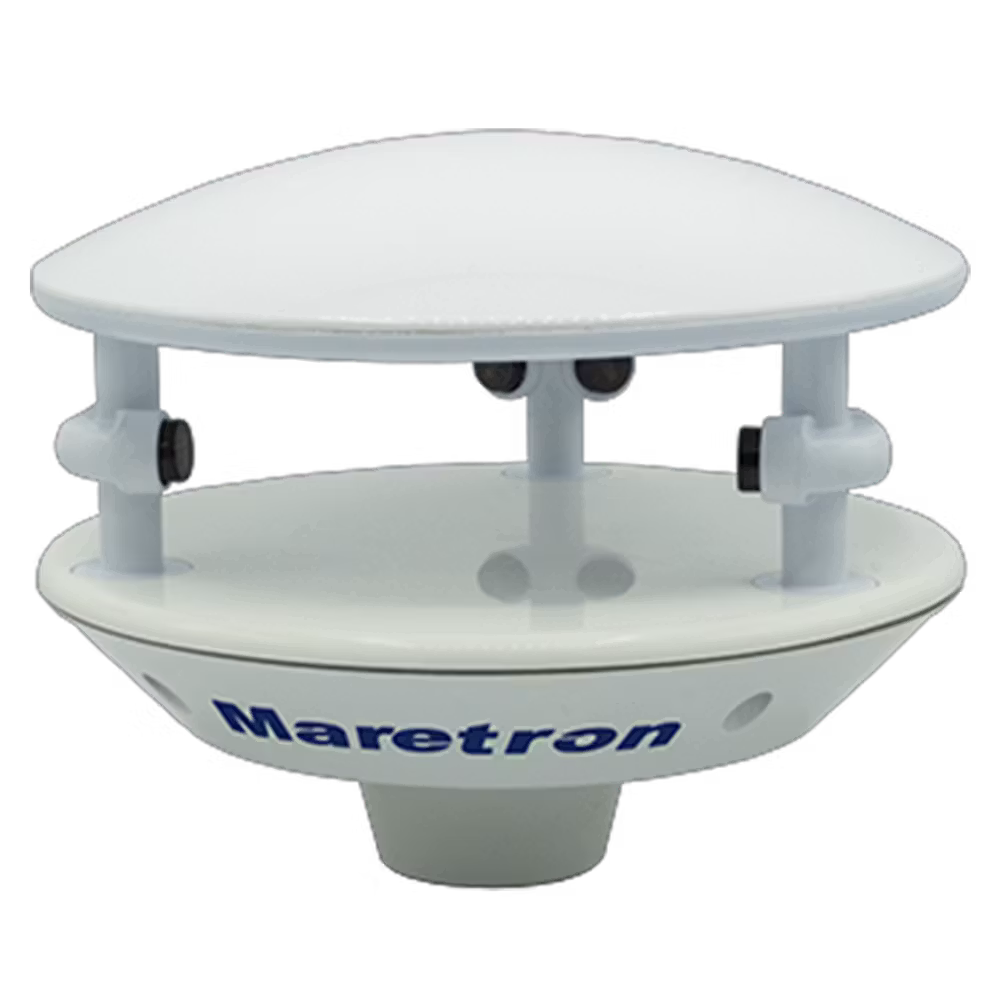

Maretron WSO200 is a marine-grade, NMEA 2000 certified ultrasonic weather station for measuring wind speed, wind direction, air temperature, barometric pressure and relative humidity. It also measures wind chill, heat index and dew point for complete environmental monitoring on board.

Wind measurement is performed by six ultrasonic transducers in a delta formation, eliminating moving parts that can wear out or get caught in the rigging. The sensor is unaffected by wear, salt, dirt or bird droppings and maintains accurate wind measurement at heel angles of up to 30 degrees.

Features

  • Measures apparent wind speed and apparent wind direction
  • Measures air pressure and air temperature
  • Measures relative humidity, wind chill, heat index and dew point
  • Ultrasonic technology with no moving parts
  • Maintains accuracy at tilt angles of up to 30°
  • NMEA 2000 certified for integration into a marine network
  • Named best new product by NMEA in October 2022

Technical specifications

  • Wind speed: 0-99 knots, ±10 % or ±1 knot
  • Wind direction: ±5°, works up to 30° tilt
  • Air temperature: -25 to +55 °C, ±1 °C
  • Humidity: 0-99 % RH, ±4 %
  • Air pressure: 880-1,080 mbar, ±3 mbar
  • Technology: Ultrasonic, no moving parts
  • Mounting: 1 inch x 14 standard thread
  • Supply voltage: 9-32V DC
  • Current consumption: Under 50mA
  • LEN: 1
  • Waterproofing: IP67
  • Operating temperature: -25 to +55 °C
  • Dimensions: Ø 150 x 123 mm (incl. mount)
  • Weight: 283 g

Compatibility

  • NMEA 2000 networks
  • Maretron DSM display, TSM display and devices with N2KView
  • Maretron DST110 depth, speed and temperature transducer
  • Maretron GPS200 GPS receiver
  • Maretron SSC300 compass
