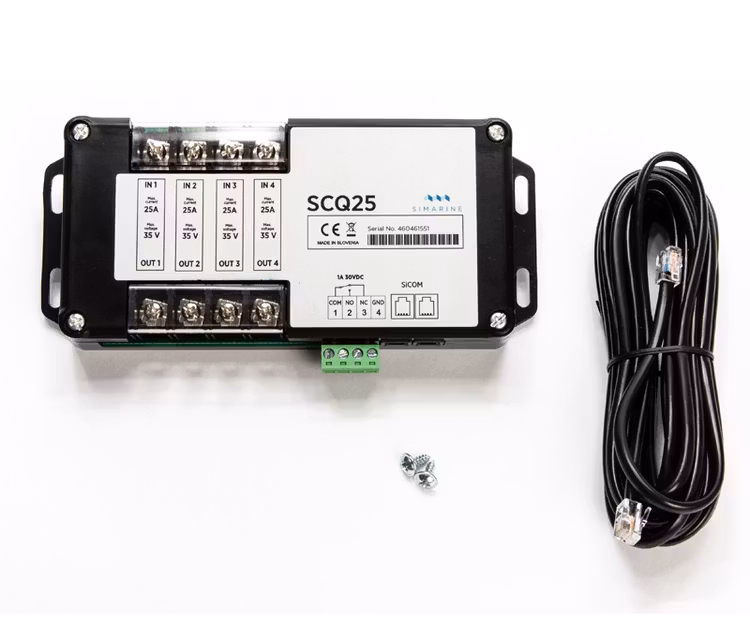

SIMARINE S004 - SCQ25T Quadro shunt 4x 25A + tank. Measures current/voltage/tank. 4x consumer and 7x analogue

  • 174.12 EUR
  • 166.19 EUR
Lowest price at PriceRunner

SIMARINE SCQ25T, is an innovative shunt for PICO with four channels to measure individual consumers or current generators up to 25A (35A peak).

Share
Item number: S004
EAN: 3830067940127
Supplier: Simarine

SIMARINE SCQ25T, is an innovative shunt for PICO with four channels to measure individual consumers or current generators up to 25A (35A peak) per channel at 12V or 24V. It makes it possible to see e.g. how much a fridge, freezer or lighting draws or how much the solar cells generate. Two channels can be connected in parallel if you need to measure higher currents (up to 50A) at 12V or 24V. The SCQ25T's innovative shielded construction allows it to be connected on either negative or positive. Up to five SCQ25T can be connected simultaneously in a system. The SCQ25T also has four resistive inputs for measuring tanks or temperatures from resistive sensors as well as three voltage inputs for measuring tanks or voltages from voltage controlled sensors.


Good product related links:< /p>


Specifications

< td colspan="2">Power consumption at 12V < td>Accuracy
Operation
Voltage range6 – 35 V
Temperature range-20 – +70 °C
Operating3.5 mA
Current measuring channels4
Current measuring range
Per channel0.01 – 50 A
Accuracy ± 0.6%
Resolution0.01 A
Sampling rate 100 ms
Maximum current
Continuous25 A
Peak current (35 A
Peak current (50 A
Voltage drop at 25 A35 mV
Maximum voltage on connections35 V
Voltage inputs
Range< /td>0-35 V
Resolution1 mV
Accuracy< /td>± 0.02%
Sampling rate100 ms
Resistance inputs
Range0 ohm - 65 kohm
± 3.0%
Number of connections
Tank level sensors7
Temperature sensors4
