Blue Sea Systems - Battery switch HD-Series 600A, 1 battery, on/off, black
  • 3,519.04 CZK
  • 2,544.71 CZK
Lowest price at PriceRunner

Blue Sea Systems HD-Series 600A is intended for one battery with two positions (On-Off) in black.

Share
Article number: 3000
EAN: 632085030001
Manufacturer: Blue Sea Systems

Blue Sea Systems HD-Series 600A is intended for one battery with two positions (On-Off) in black. The switch connects a single battery to a single load group and is used to safely disconnect or connect the power supply in electrical systems on boats and vehicles. It is designed to handle high current loads in DC installations.

Features

  • Battery switch with two positions: On and Off
  • Suitable for a single battery or battery bank
  • Switches a single battery to a single load group
  • Designed for 12V, 24V and 48V DC systems
  • Black housing and knob

Technical specifications

  • Series: HD-Series
  • Continuous current: 600A
  • Intermittent current: 900A (5 minutes)
  • Cranking current: 1,750A (30 seconds)
  • Positions: 2 (on/off)
  • AFD (alternator field disconnect): No
  • Max voltage: 32V DC

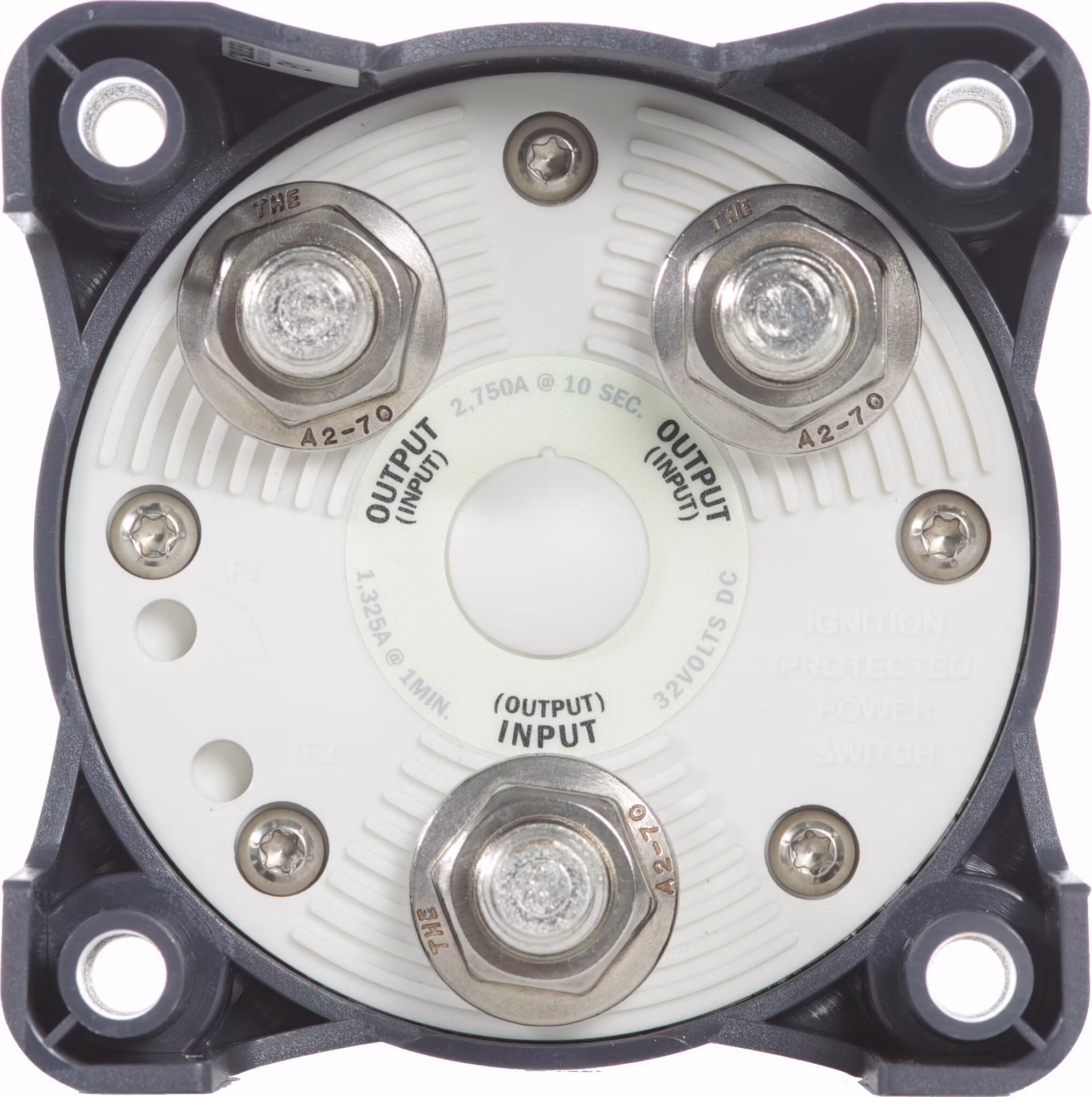

  • Connection: 1/2 inch (M12) tinned copper studs, 22 mm
  • Cable size: Up to 120 mm² (4/0 AWG)

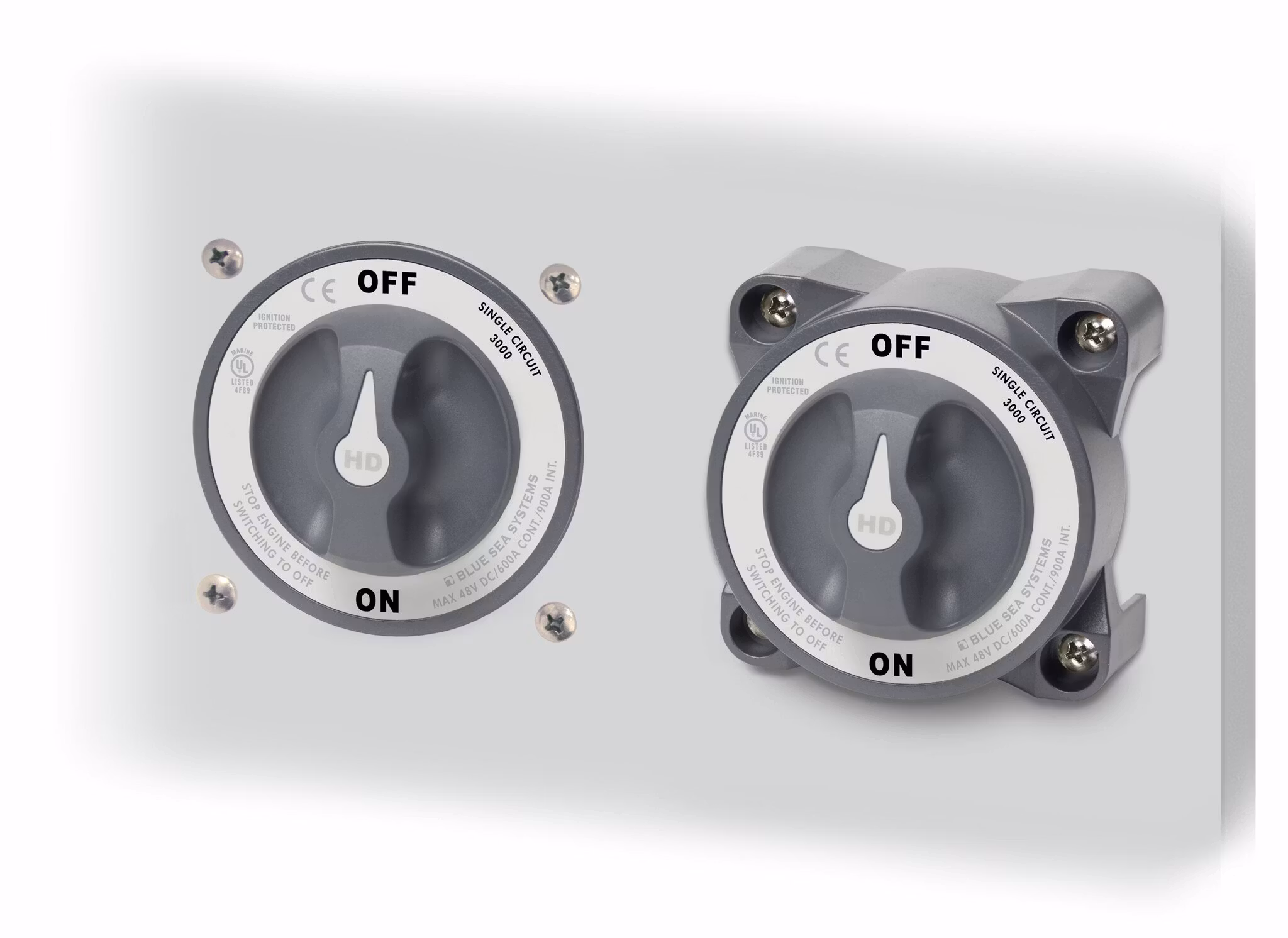

  • Mounting: Surface mounting or back panel mounting (hole Ø 92 mm)
  • Waterproofing: IP66
  • Ignition protected: Yes, UL 1500 and SAE J1171
  • Colour: Black
