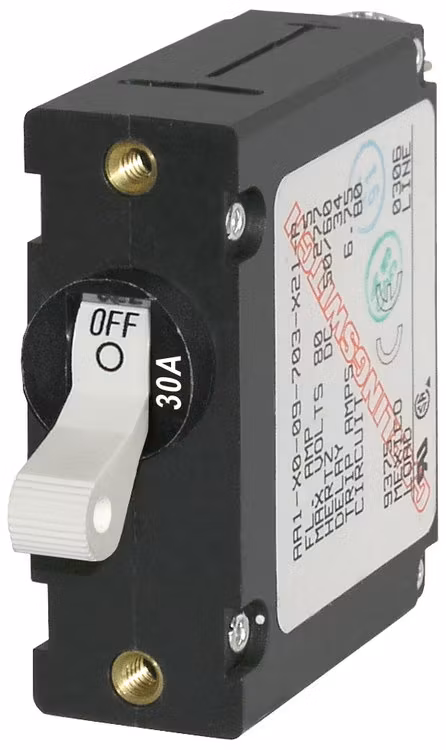

Blue Sea Systems - Automatsikring DC/AC 30A 1-p, hvit
  • 237.02 DKK
  • 232.28 DKK
Lowest price at PriceRunner

BLUE SEA SYSTEMS 7218, er en automatisk sikring DC/AC 30A, 1-p, hvit.

Del
Varenummer: 7222
EAN: 632085072223
Leverandør: Blue Sea Systems

BLUE SEA SYSTEMS 7222, er en automatsikring DC/AC 30A, 1-p, hvit.


Produktegenskaper

  • Oppfyller American Boat and Yacht Council (ABYC) standarder
  • Industry Terms standardbryteren for Blue Sea Systems elektriske paneler
  • Kombinerer kobling og kretsbeskyttelse til en enkelt enhet
  • "Trip Free" -design kan ikke holdes "ON" under feilstrømtilstander


Spesifikasjoner

Amperage30A AC
30A DC
ColorWhite
Actuator StyleToggle
Poles1
Maximum Voltage240V AC
65V DC
Circuit Breaker TypeMagnetic Hydraulic - trip free
Interrupt Capacity3000A @ 120V AC
1500A @ 240V AC [TUV]
3000A @ 240V AC [UL 1077]
7500A @ 65V DC
Minimum Operating Temperature-40° C
Maximum Operating Temperature85° C
Mounting Screw#6-32 Stainless Steel
Mounting Screw Torque6 in-lb (0.68 Nm)
Screw Terminal Torque14 in-lb (1.58 Nm)
Switching Cycles10000
Terminal Screws#10-32 Stainless Steel
Weight0.17lb (0.08 kg)
